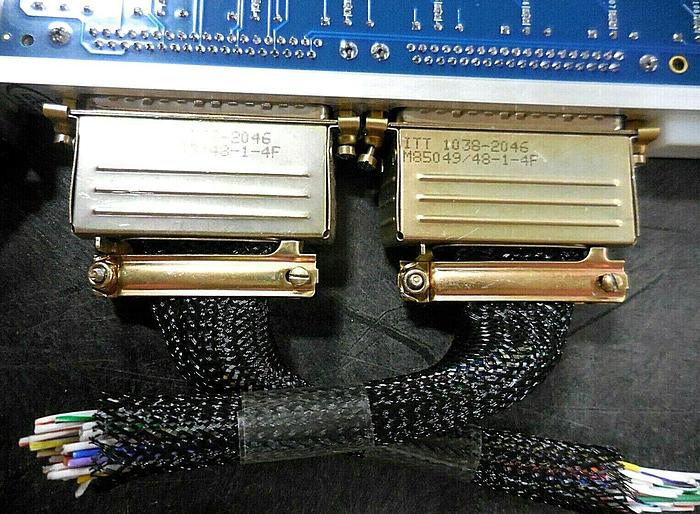

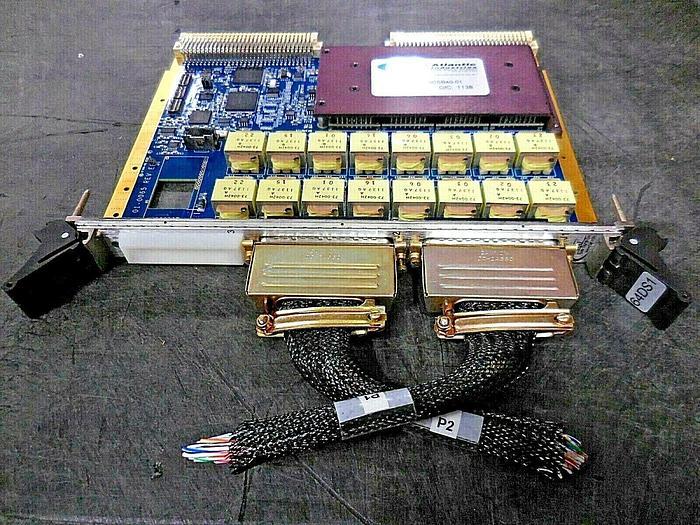

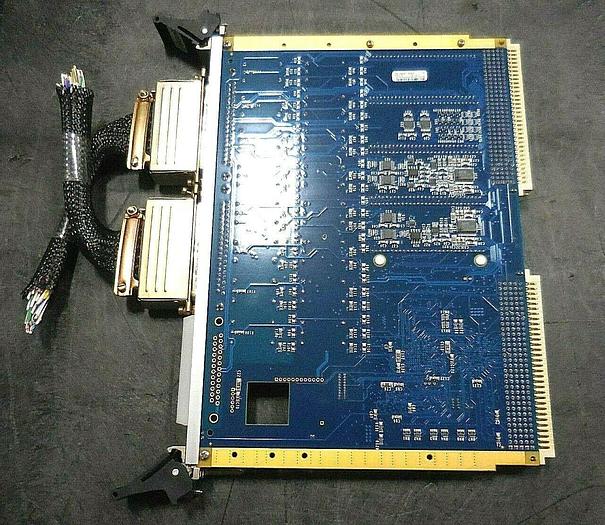

North Atlantic Apex VME 64DS1-8CSB40-01 Digital-to-Synchro/ Resolver (Rev. E) #1

North Atlantic Industries Apex Signal Division VME 64DS1-8CSB40-01 Digital-to-Synchro/Resolver (Rev. E) #1 Two-Speed or Single-Speed or Combination (Programmable), 16-Bit Resolution, Wrap-Around Self-Test, Programmable Rotation 8 D/S Channels, 0-70˚C, Format: Synchronous, Mechanical: VME64 Front Panel With Front Panel I/O & P2 I/O Options 01: Without On-Board Reference - Individual Reference Inputs, Options 02: None Output: 11.8 VL-L, Ref: 26 Vrms, Frequency: 400 Hz, Load: 1.2 VA D/C: 1138, S/N: 41980 FEATURES: • 16-Bit Resolution • 30 Arc-Seconds Accuracy • Continuous Background BIT Testing With Reference And Signal Loss Detection • Power-On Self-Test (POST) • Programmable 2-Speed Ratios (2 To 255) And Angle Rotation • Outputs Can Be Turned ON/OFF • Redundant Operation Available (Contact Factory) • 360 Hz To 10 kHz Operations • Optional On-Board Programmable Reference Supply • Transformer Isolated • Watchdog Timer And Soft Reset • 8, 6, 4 And 2-Channel Versions Available
